The following instructions should be read by a qualified

technician to ensure that the appliance is installed,

regulated and technically serviced correctly in compliance

with current regulations.

Important: disconnect the cooker from the electricity when

making any adjustement, maintenance operation, etc.

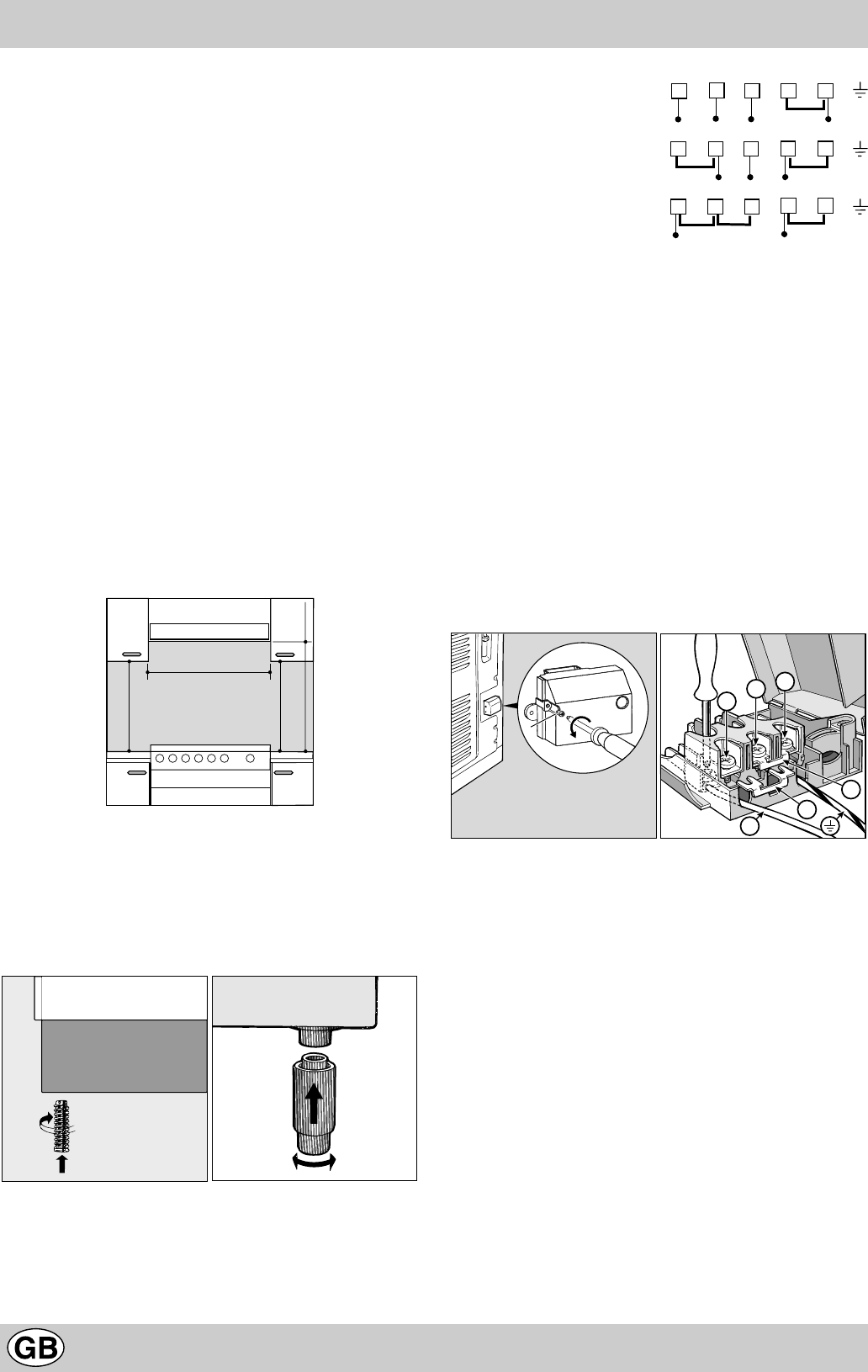

Positioning

The appliance can be installed next to furniture units which

are no taller than the top of the cooker hob. For proper

installation of the cooker, the following precautions must

be taken:

a) Kitchen cabinets installed next to the cooker that are

taller than the top of the hob must be situated at least

200 mm from the edge of the hob.

b) Hoods must be installed according to the requirements

in the installation manual for the hoods themselves and

in any case at a minimum distance of 650 mm.

c) Place the wall cabinets adjacent to the hood at a

minimum height of 420 mm from the hob (see figure).

d) Should the cooker be installed beneath a wall cabinet,

the latter should be situated at least 700 mm

(millimetres) away from the hob, as shown in the figu-

re.

e) the cut-out for the cooker cabinet should have the

dimensions indicated in the figure.

Levelling your appliance (only on a few models)

Your cooker is supplied with feet for levelling the appliance.

If necessary, these feet can be screwed into the housings

in the corners of the cooker base (Fig. A).

Mounting the legs (only on a few models)

Press-fit legs are supplied which fit under the base of your

cooker (Fig. B).

Fig. A Fig. B

Electrical connection

The power supply cable since its size depends on the

electric connection (see the following connection diagram).

Feeding cable installation

Terminal block opening:

· Unscrew screw “V” (Fig. C)

· Pull and open the junction block lid

For the installation of the feeding cable carry out the

following operations:

· position the small connection A-B according to the type

of connection that has to be performed using the

scheme shown in the figure D.

Note: the small connections are prepared by the Factory

for the 230V monophase connection (contacts 1-2-3 are

connected to one another). The bridge 4-5 is situated in

the lower part of the terminal block.

· introduce the cables (N and

6

) as shown in the figure

and tighten the relative screws.

· fix the remaining cables on the 1-2-3 clips.

· fix the feeding cable in the special cable stop and close

the cover fastening it with the screw “V”.

Fig. C Fig. D

Connecting the supply cable to the mains

Fit a plug, normalised for the load indicated on the data

plate, on the cable; when making the connection directly

to the mains, an omnipoIar switch with a minimum opening

of 3 mm between the contacts, must be installed between

the appliance and the mains. This switch must be sufficient

for the load and must comply to regulations in force (the

earthing wire must not be interrupted by the switch). The

power supply cable must be positioned so that it does not

exceed 50°C more than room temperature at any point of

its length. Before making the connection check that:

· the limiter valve and the home system can support the

appliance load (see data plate);

· the power supply system has an efficient earthing

connection which complies with the provisions of

current regulations;

· the socket or omnipoar circuit-breaker is easily

accessible once the cooker has been installed.

Installation

HOOD

420

Min.

min.

650

mm. with hood

min.

700

mm. without hood

mm.

600

Min. mm.

420

Min. mm.

1 2

3

4

5

12345

1

2

3

4

5

R

S

T

N

R

S

N

R

N

400V 3N

~

H05RR-F 5x2.5 CEI-UNEL 35363

400V 2N

~

H05RR-F 4x2.5 CEI-UNEL 35363

230V 1N

~

H05RR-F 3x4 CEI-UNEL 35363

V

1

2

3

N

A

B
